Fixed Spot Welding Machine

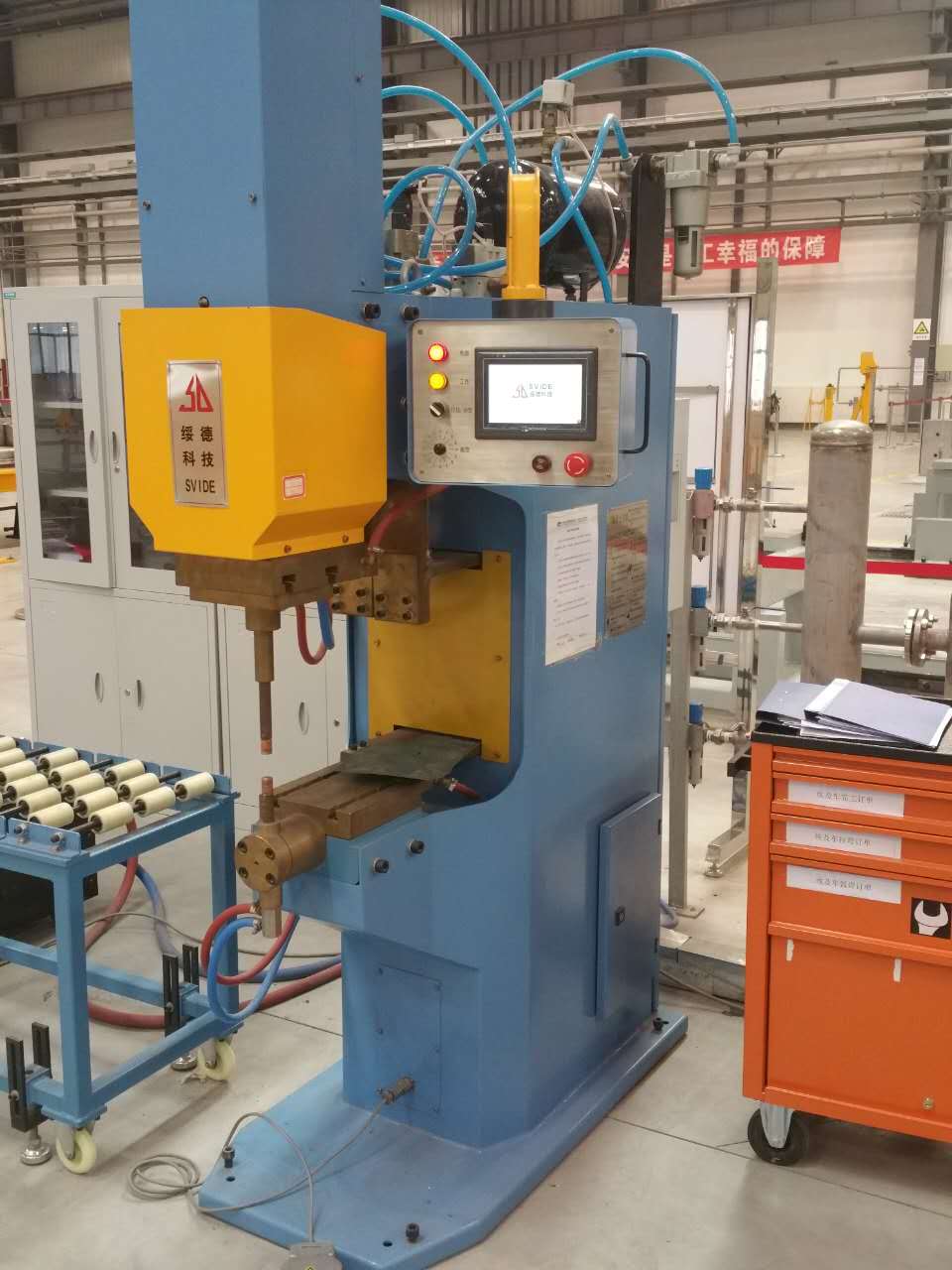

Power Frequency Vertical Spot Welding Machine



Application: automobile & rail transit vehicle manufacturing industry and the manufacturing support of large parts welding


The structure of the machine is novel and reasonable, the base strength is large, and the self weight is light. The pneumatic pressurization system adopts imported components, and the transformer is made of high-quality silicon steel sheet windings. Especially the control system with excellent performance makes the machine have excellent welding characteristics. Low noise, large output current, stable current, large setting of welding parameters, intuitive display, complete protection and alarm functions, which can fully meet the process requirements of spot welding.


DN2-75 DN2-100 DN2-200
Rated voltage (AC) 380 380 380
Rated frequency HZ 50 50 50
Rated capacity KVA 75 75 75
Secondary voltage V 8.6 9.5 11.2
Max. welding current KA 20 23 34
Max. Output capacity KVA 170 220 420
Working distance mm 20-100 20-100 20-100
Max. electrode pressure N 650 650 1150
Max. Electrode arm length mm 550 550 450
Cooling water flow rate L/min 6 6 6
