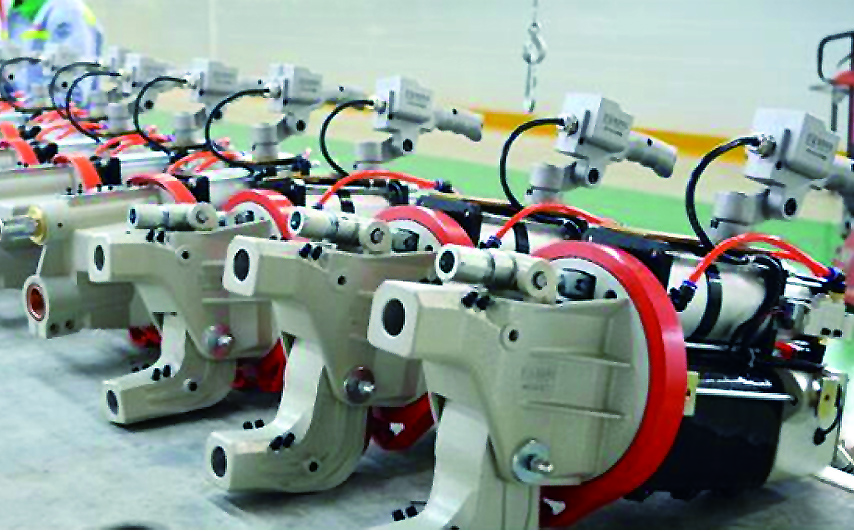

Application: welding manufacturing of automobile & rail transit vehicle industry
Energy saving: the transformer and welding guns are directly integrated, eliminating the consumption of water cable, thus greatly saving energy (72.5% relative energy saving)
Easy to operate: with bearing disc hanging device, it can move and weld in any direction in X, y and Z, which is convenient and light
Great variety of goods: can be customized according to user needs to meet the needs of different stations, different thicknesses and different processes
Small size: reducing the volume by 75% and the weight by 80%
Technical parameter | DN2-40X4H | DN2-40C4H | DN2-63X4H | DN2-63C4H | Remark |
Rated capacity KVA | 40 | 40 | 63 | 63 | |
Power voltage V | AC380 | AC380 | AC380 | AC380 | |
Duty cycle % | 50 | 50 | 50 | 50 | |
Max short-circuit current KA | 14 | 14 | 16 | 16 | Testing with standard short-circuit |
Secondary no-load voltage V | 6.8 | 6.8 | 7.9 | 7.9 | |
Extension length of electrode arm mm | 400 | 400 | 600 | 600 | Standard configuration |
Electrode arm spacing mm | C* | 110 | C* | 110 | Standard configuration |
Electrode working stroke mm | 20 | 20 | 20 | 20 | |
Electrode auxiliary stroke mm | 100 | 45 | 120 | 45 | Standard configuration |
Air supply pressure Mpa | 0.5 | 0.5 | 0.5 | 0.5 | |
Max. electrode pressure N | 2400 | 2400 | 2400 | 2400 | Standard configuration |
Max. Welding thickness mm | 2.5*2.5 | 2.5*2.5 | 3*3 | 3*3 | Standard configuration |
Cooling water flow rate L/min | 4 | 4 | 4 | 4 | |
Cooling water pressure Mpa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | Standard configuration |
Weight Kg | 65 | 65 | 75 | 75 |
